Instruments summary | NIRS | MIRS | FILM | FIRP

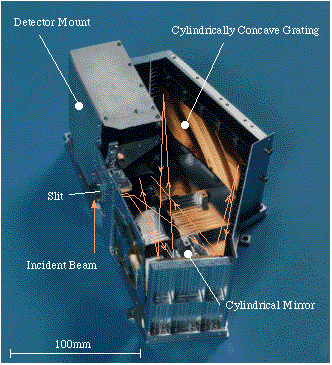

The Far-Infrared Line Mapper (FILM) is a grating spectrometer designed to simultaneously measure (C II) 158 microns and (O I) 63 microns line intensities and continuum emission near the (C II) line with spatial resolution of 8 arcmin. Very high sensitivity and accuracy are achieved by using stressed and unstressed Ge: Ga detectors at 1.8 K with a helium cooled telescope and by using a spectral scanner to distinguish the line emission from the continuum emission. Line intensities of the (C II) and the (O I) will be mapped over 10% of the sky with much higher sensitivity than the previous survey measurements.
| Size | 250 x 150 x 130 mm |
|---|---|
| Weight | 1950 g |
| Grating | a varied line-space cylindrically concave grating |
| Beam size (FWHM) | 8' (dispersion direction) x 13' |
| Area to be observed | 10-20% of the sky |
| Channel | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Band Center (cm-1) | 64.4 | 63.4 | 62.4 | 158.4 |
| Resolving Power | 130 | 409 | 130 | 405 |
| Detectors | stressed Ge:Ga | stressed Ge:Ga | stressed Ge:Ga | Ge:Ga |
| Optical through-put | 0.34 | 0.30 | 0.34 | 0.15 |
| S (detector) (A/W) | 10.1 | 11.1 | 9.7 | 0.51 |
| System NEP (10-16 W/Hz1/2) | 1.8 | 0.60 | 1.7 | 12 |
For more details, refer to the following documents.
FILM Explanatory Supplement [PDF]
